直流可调速压缩机

产品特点:

DC12V/24V/48V/72V无刷直流变频压缩机可以广泛应用于卡车、电动汽车、特种车、舰艇、热泵、太阳能空调和基站空调;具有安全、节能、环保的特性。
分类:

描述

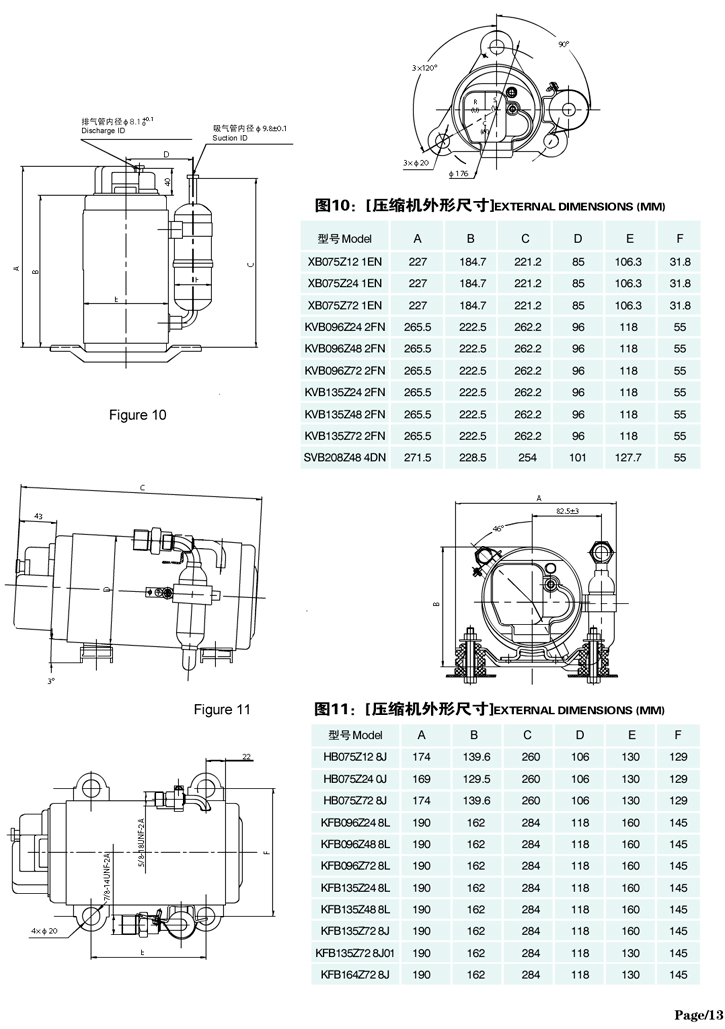

外形尺寸
性能参数

COMPRESSOR PERFORMANCE PARAMETERS:

制冷剂

Refrigerant

电源规格

Power

型号

Model

控制器型号

Control Model

排量

cc/rev

调速范围

(rpm)

额定转速

(rpm)

制冷量输入功率

Input

Power(W)

COP

压缩机高度

Height
(mm)

WBtu/h
立式

Vertical

R134aDC12VJVB075Z12BYC(D)12-400-47.52500-3700330085028903402.50228
DC24VJVB075Z24BYC(D)24-400-47.52500-4500330092031283402.7228
KVB135Z24BYC(D)24-600-213.52500-45003300178060525803.07269
DC48VJVB058Z48BYC(D)48-300-45.82100-5400360084028562553.3190
KVB135Z48BYC(D)48-600-213.52500-45003300178060525603.17269
SVB208Z48BYC(Z)48-1240-220.82500-420036003010102349703.1271.5
卧式

Horizontal

R134aDC12VHB075Z12BYC(D)12-400-47.52500-3700330085028903402.50136.5
JFSB116Z12/11.61800-45003000100034004002.5145
DC24VHB075Z24BYC(D)24-400-47.52500-4500330092031283402.7136.5
JFSB150Z24/15.01800-45003300175059505653.10145
KFB135Z24BYC(D)24-600-213.52500-45003300178060525703.12169
DC48VJFSB180Z48/18.01800-45003600250085007703.25106
KFB135Z48BYC(D)48-600-213.52500-50003300178060525703.12169
DC60-72VJFSB150Z60BYC(J)72-700-415.02500-50003600210071406453.25106
JFSB150Z72BYC(J)72-700-415.02500-50003600210071406453.25106
JFSB180Z60BYC(J)60-700-418.02500-50003600250085007703.25106
JFSB180Z72BYC(J)72-700-418.02500-50003600250085007703.25106
DC312VJFSB150Z312BYC(J)312-600-415.01800-54003600210071406353.3106
JFSB180Z312BYC(J)312-600-418.02500-50003600245083307652.28106
KFB208Z312BYC(J)312-1000-320.82400-4500410033001122010643.4169
R410a220V/50HzKFA102Z220BYC(J)220-1000-310.22400-4500420036751249511503.2160
KFA113Z220BYC(J)220-1000-311.32400-4500360034501173010803.2160
JFSA116Z220/11.61800-4500360036001224011503.2147
R407c220V/50HzKFSA138K/13.8//32001088011432.80170
KFSC184K/18.4//32001088011432.80170

NOTE: In developing.(The displacement could be adjusted or developed as your requirement)

TEST CONDITIONS:

APPLICATIONAMBIENT TEMP.EVAP. TEMP.RETURN GAS TEMP.SUBCOOLING TEMP.CONDENSING TEMP.TESTING WIND SPEED
HIGH TEMP35℃7.2℃35℃46.1℃54.4℃2m/s
